PE compression fittings

General specifications :

• CW617N brass fittings according to EN 12165 standard
• Biconic ring for doubling the latching force
• The retention of the ring on the PE tube offers a reinforced resistance with guaranteed pressure resistance
• O-ring for perfect sealing
• Pipe assembly without removing the fitting • ISO228 thread

Performances :

• Proof pressure 25 bar
• Operating pressure 16 bar

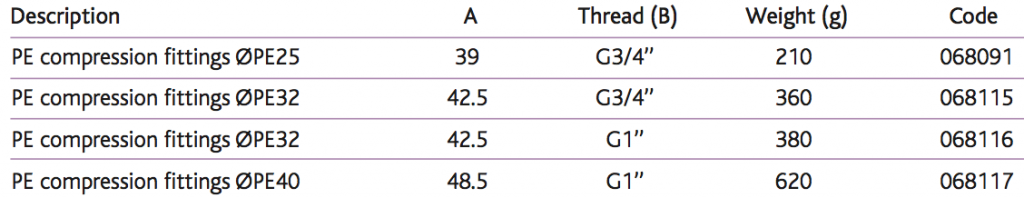

Compression fittings

Raccord-compression-PE-068091_1

Example of installation :

Ensemble compteur clapet raccord PE
